Check out the dynamic pictures found on the product page content for an idea of how the lights will function.

If you choose Signal Only it will only work as a flashing amber signal.

If you choose Sequential Signal Only it will only work as a scanning amber signal.

If you choose Signal & Running Light the lights will illuminate as an amber running light, and flash as an amber turn signal. Further explained, if you just have the running lights on the light will be a solid amber strip. If you activate the turn signal while the running lights are on the solid amber light will turn off, and the amber light will flash. After the signal turns off the amber light will turn back on. If your running lights are off the amber signal light will flash like a normal signal.

If you choose Sequential Signal & Running Light the lights will illuminate as an amber running light, and scan as an amber turn signal. Further explained, if you just have the running lights on the light will be a solid amber strip. If you activate the turn signal while the running lights are on the solid amber light will turn off, and the amber light will scan. After the signal turns off the amber light will turn back on. If your running lights are off the amber signal light will scan like a normal signal.

If you choose Switchback the lights will illuminate as a white running light, and flash as an amber turn signal. Further explained, if you just have the running lights on the light will be a solid white strip. If you activate the turn signal while the running lights are on the solid white light will turn off, and the amber light will flash. After the signal turns off the white light will turn back on. If your running lights are off the amber signal light will flash like a normal signal.

If you choose Sequential Switchback the lights will illuminate as a white running light, and scan as an amber turn signal. Further explained, if you just have the running lights on the light will be a solid white strip. If you activate the turn signal while the running lights are on the solid white light will turn off, and the amber light will scan. After the signal turns off the white light will turn back on. If your running lights are off the amber signal light will scan like a normal signal.

Our Lumastep M1 running boards come with a few different harnesses to make installation as easy as possible. These harnesses tap to each headlight, allowing the turn signal and running lights to function properly.

If you purchase the rock light function, we offer an optional harness with a switch to gain the feature or you can simply power it with any 12V switch (you can use an existing rock light switch if you have it in your vehicle).

Our full installation video will walk you through step by step, and our support team is always happy to help if you have any questions!

If your truck is equipped with Fixed LED or Halogen Headlights you must hardwire the lighting features using our easy to install harnesses.

Our plug-and-play adapters are only offered for trucks with OEM Adaptive LED Headlights.

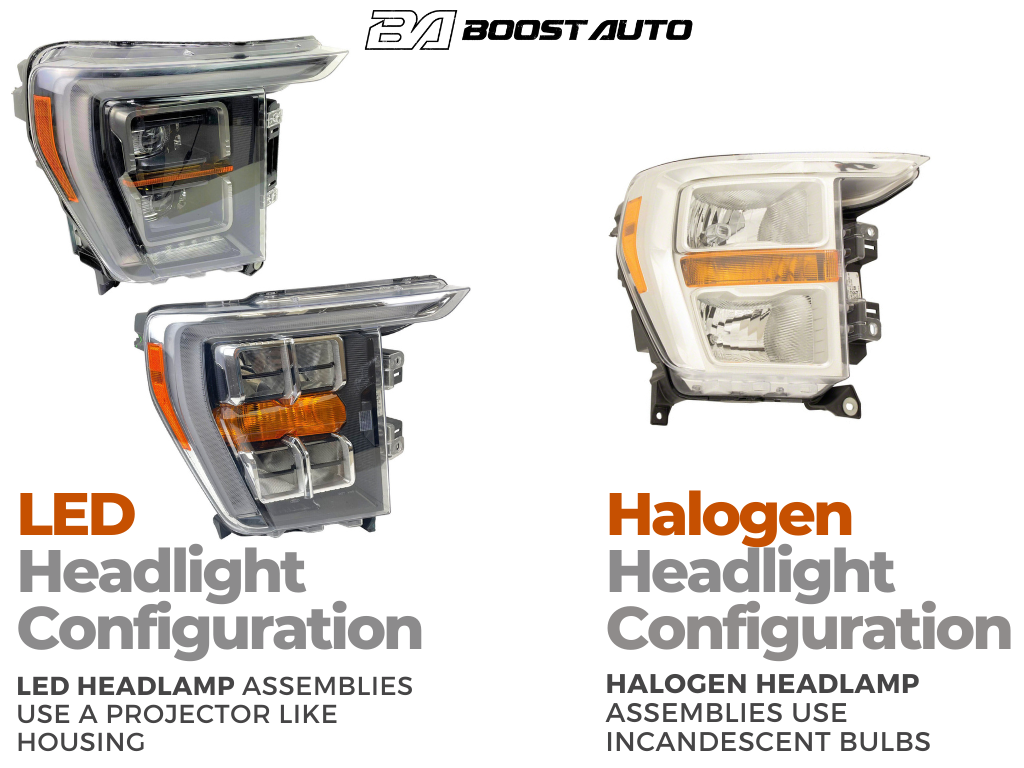

Halogen headlights will use an incandescent bulb which tends to have a yellow beam pattern. LED headlights will have a cool white beam pattern. Please reference the below graphic depicting the visual difference between Halogen and LED headlights.

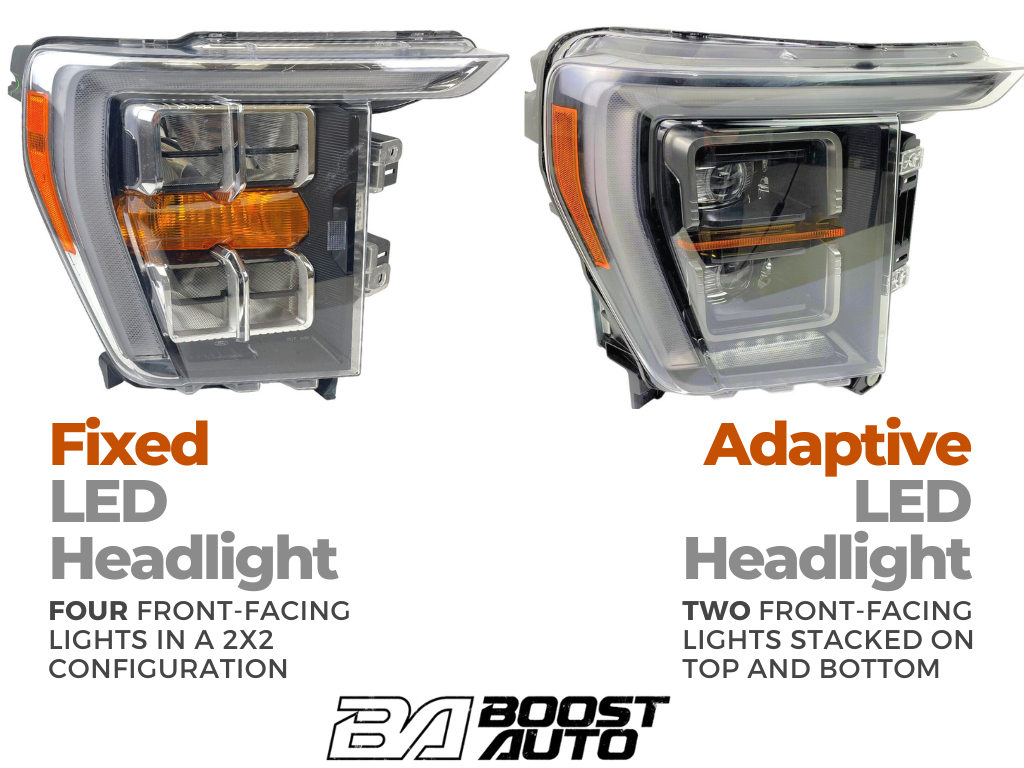

There are two configurations of LED headlights on 2021+ Ford F-150 trucks. Please reference the below graphic depicting the visual differences between the two configurations.

Fixed LED Headlights will have 4 front-facing lights that are stacked in a 2 x 2 configuration.

Adaptive LED Headlights will have 2 large front-facing lights that are stacked.

All necessary harnesses and hardware will be supplied with your order based on the options you select.

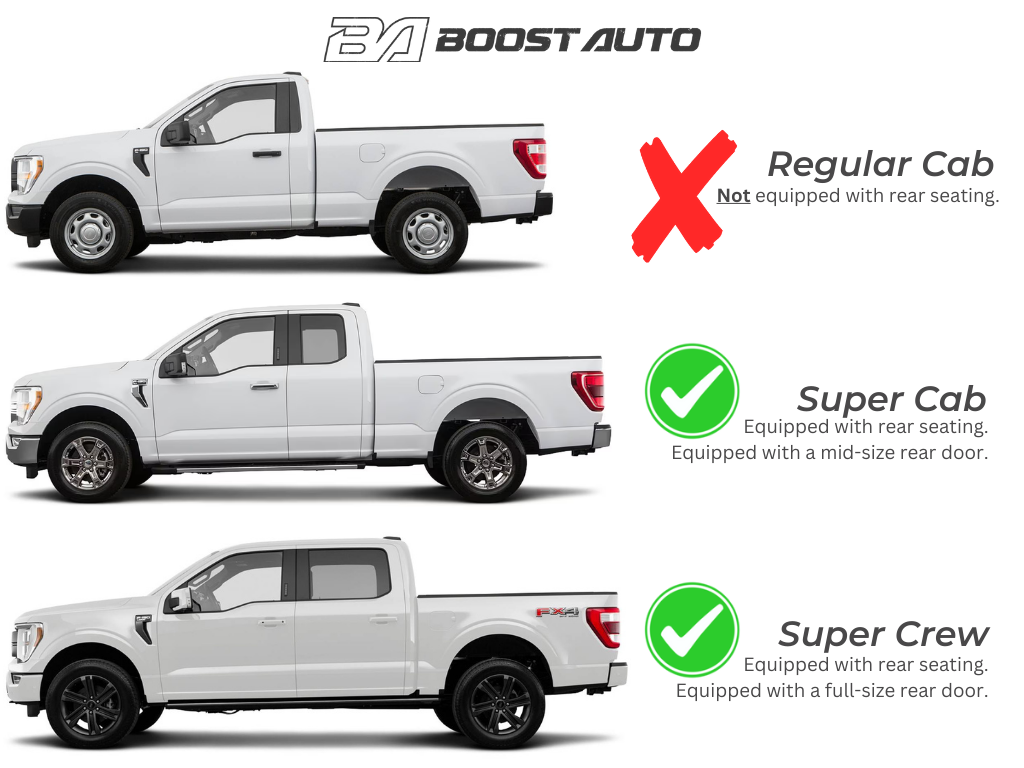

Super Cab (also known as extended cab) trucks allow for rear seating without a full-size rear door. Super Crew trucks allow for rear seating with a full-size rear door. Super Crew trucks offer a larger cabin area than Super Cabs. Please review the below graphic depicting the difference between styles of cabins.

Boost Auto Lumastep Running Boards are not compatible with Regular Cab trucks (without rear seating).

Our Lumastep M1 boards are not power-retractable. If you would like to purchase our Lumastep M2 Powered Running Boards click here.

Our running boards are built with durable 6000 Series Aerospace Grade Aluminum. Once installed on your truck, our running boards are rated for up to 400lbs.

The rock light feature will allow you to enable the white running board lights at any time! This allows the white lights to turn on and stay on, even when the truck is off.

The rock light feature overrides the rest of the functions of the board such as the running light and turn signal. This means that the signals will not illuminate when activated if the rock lights are on. If your running boards are equipped with amber running lights, the rock lights will illuminate white, overriding the amber color.

You do NOT need to drill holes in the frame of your truck. Our mounting brackets will simply bolt onto your truck's frame at the designated mounting points as shown in our installation video.

Please reference above for the link to the installation video showing a step-by-step procedure for your truck.

ABSOLUTELY!

These boards were specifically designed to withstand the harshest elements. All components are designed with weather-proof sealed connectors and critical components are completely potted, to ensure they can withstand any rain, snow, dirt, or mud that may get in the way during your most adventurous trips!

No, you do not need to remove your headlights to install our harness! The headlight connectors on your truck can be easily accessed from the fender well for both sides.

Our Lumastep M1 Light Up Running Boards are offered for Super Crew trucks as well as Super Cab trucks.

Super Crew trucks will receive an 85" Light Up Running Board.

Super Cab trucks will receive a 78" Light Up Running Board.

Boost Auto Step Pads for Lumastep M1 Light Up Running Boards come in three unique design options (Triangle, Hex, Basic) and three different color options (Blue, Grey, Red). You can take a closer look at the available designs in the below graphic.
