Lumastep M1 Light Up Running Boards | 2023-2024 Chevy Colorado/ GMC Canyon

Starting At
Sale price $ 550.95

Choose options to update the price

Choose Your Options:

+
1
Light Function
+
2
Optional Start-Up Sequence
Scroll down to see images detailing the Start-Up Sequence.
+
3
Do you want Rock Light Functionality?
Adding rock light to your board will allow you to override any other functions to activate the LED light strip as white.
+
4
Do you have a Chevy Colorado or GMC Canyon?
Our wiring solution is slightly different depending on what vehicle you have.
+
5
Do you want Boost Auto Step Pads?
Our Boost Auto Step Pads offer added grip and style to our Lumastep M1 Running Boards! Scroll down to see the styles and colors we have to offer.
Fits your ?
This doesn't fit your ?
or SEE ALL COMPATIBLE PRODUCTS
Enter your vehicle info to

Boost Auto is thrilled to bring you our first of it's kind Lumastep M1 Light Up Running Boards! These running boards offer the typical function of a side step, but with the added lighting upgrades that Boost Auto is known for. Our Lumastep M1 Light Up Running Boards are durable and built for anyone, in any environment, to ensure you get the work at hand done all while standing out from the crowd. Step up your game with our Lumastep M1 Light Up Running Boards.



  • Made with 6000 Series Aerospace Grade Aluminum
  • Detailed Installation Video
  • Full Bracket and Hardware kit Included
  • High Quality Bright LED Lights
  • Full Wiring Harness Included
  • Optional Running Light Function
    • Offered with Signal & Running Light or Switchback Functions (White or Amber)
  • Standard or Sequential Amber Turn Signal
  • Optional Rock Light Function
    • Override All Other Functions to Achieve a Bright White Rock Light
  • Optional Start-Up Sequence
    • LED Lights Scan in a Unique Pattern at Initial Start-Up for Premium Show Appearance
    • Start-Up Color Matches Running Light Color
  • Optional Step Pads
    • 3 Unique Design Options
    • 3 Color Options (Grey, Red, Blue)





These light-up running boards fit a wide range of vehicles including the following:

Vehicle fitment Fitment note

FAQ

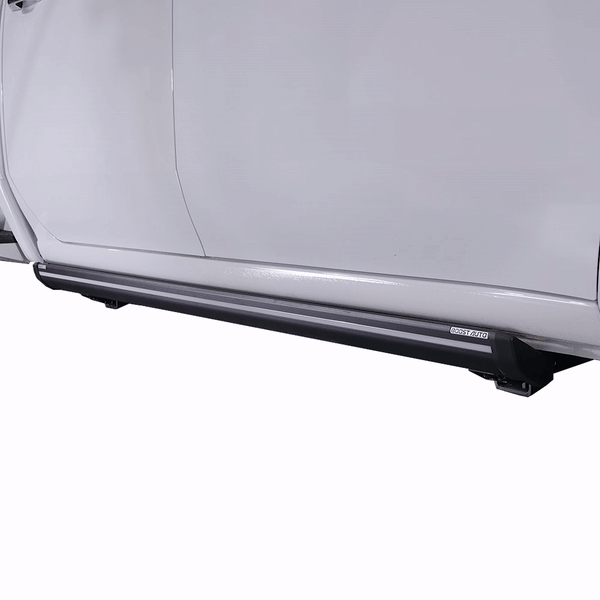

Check out the dynamic pictures found on the Product Details tab for an idea of how the lights will function.

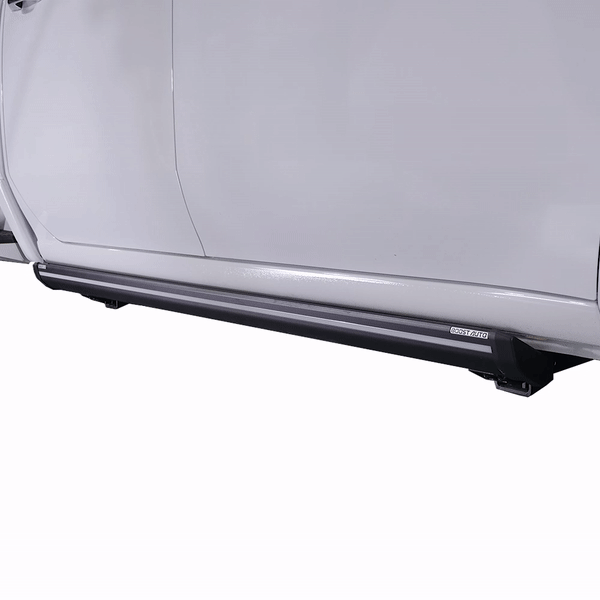

If you choose Signal Only it will only work as a flashing amber signal.

If you choose Sequential Signal Only it will only work as a scanning amber signal.

If you choose Signal &  Running Light the lights will illuminate as an amber running light, and flash as an amber turn signal. Further explained, if you just have the running lights on the light will be a solid amber strip. If you activate the turn signal while the running lights are on the solid amber light will turn off, and the amber light will flash. After the signal turns off the amber light will turn back on. If your running lights are off the amber signal light will flash like a normal signal.

If you choose Sequential Signal & Running Light the lights will illuminate as an amber running light, and scan as an amber turn signal. Further explained, if you just have the running lights on the light will be a solid amber strip. If you activate the turn signal while the running lights are on the solid amber light will turn off, and the amber light will scan. After the signal turns off the amber light will turn back on. If your running lights are off the amber signal light will scan like a normal signal.

If you choose Switchback the lights will illuminate as a white running light, and flash as an amber turn signal. Further explained, if you just have the running lights on the light will be a solid white strip. If you activate the turn signal while the running lights are on the solid white light will turn off, and the amber light will flash. After the signal turns off the white light will turn back on. If your running lights are off the amber signal light will flash like a normal signal.

If you choose Sequential Switchback the lights will illuminate as a white running light, and scan as an amber turn signal. Further explained, if you just have the running lights on the light will be a solid white strip. If you activate the turn signal while the running lights are on the solid white light will turn off, and the amber light will scan. After the signal turns off the white light will turn back on. If your running lights are off the amber signal light will scan like a normal signal.

Our Lumastep M1 running boards come with a few different harnesses to make installation as easy as possible. These harnesses tap into each headlight, allowing the turn signal and running lights to function properly.

If you purchase the rock light function, we offer an optional harness with a switch to gain the feature or you can simply power it with any 12V switch (you can use an existing rock light switch if you have it in your vehicle).

Our full installation video will walk you through step by step, and our support team is always happy to help if you have any questions!

Our easy to install plug and play adapter is only offered for GMC Canyon trucks. Chevy Colorado trucks must use our hardwire adapter.

Please reference our step by step installation video showing the procedure for both applications in detail.

All necessary harnesses and hardware will be supplied with your order based on the options you select.

Our running boards are built with durable 6000 Series Aerospace Grade Aluminum. Once installed on your truck, our running boards are rated for up to 400lbs.

No, unfortunately we do not offer a power retractable option.

The rock light feature will allow you to enable the white running board lights at any time! This allows the white lights to turn on and stay on, even when the truck is off.

The rock light feature overrides the rest of the functions of the board such as the running light and turn signal. This means that the signals will not illuminate when activated if the rock lights are on. If your running boards are equipped with amber running lights, the rock lights will illuminate white, overriding the amber color.

You do NOT need to drill holes in the frame of your truck. Our mounting brackets will simply bolt onto your truck's frame at the designated mounting points as shown in our installation video.

Please reference above for the link to the installation video showing a step-by-step procedure for your truck.

ABSOLUTELY!

These boards were specifically designed to withstand the harshest elements. All components are designed with weather-proof sealed connectors and critical components are completely potted, to ensure they can withstand any rain, snow, dirt, or mud that may get in the way during your most adventurous trips!

The installation of our Light-up Running Boards will not require the removal of any vehicle components. Please reference our detailed installation video showing the procedure step-by-step.

GMC Canyon and Chevy Colorado trucks will receive a 78" Light Up Running Board set.

Boost Auto Step Pads for Lumastep M1 Light Up Running Boards come in three unique design options (Triangle, Hex, Basic) and three different color options (Blue, Grey, Red). You can take a closer look at the available designs in the below graphic.

Why Choose Boost Auto?

Running Board Light Function

The Competition: No illumination

Boost Auto: Offered with over 20 different lighting options to achieve your desired appearance

Instructions

The Competition: No Instructions

Boost Auto: Detailed Installation Instructions & Videos

Technical Support

The Competition: No technical support, and customer service often speaks broken English

Boost Auto: Live & helpful American support via phone or email. We know these trucks because we own these trucks!

Quality Materials

The Competition: Boards are made of steel making them prone to rust and premature wear.

Boost Auto: Boards are made of 6000 series aerospace grade aluminum to prevent rust and enhance durability.

Serviceability

The Competition: Required to buy a new set even to replace a small part

Boost Auto: Our boards are designed to be fully serviceable, so if you need a replacement piece we have you covered

Quality Checks

The Competition: No quality checks. Imported from Asia & shipped directly to you.

Boost Auto: 100% end of line quality checked right here in the USA

Warranty

The Competition: Claims of extended warranties, but denial of warranty claims or no response when issues arise.

Boost Auto: 1-year warranty upheld, with real technical support to get the problem fixed the right way the first time.
