2020 Style GM Key Fob Retrofit (2007.5-2014 Trucks & SUV's)
Choose options to update the price
Choose Your Options:
or SEE ALL COMPATIBLE PRODUCTS
- Ships Within 1-Business Day
- Ships Within 1-Business Day
- Ships Within 1-Business Day

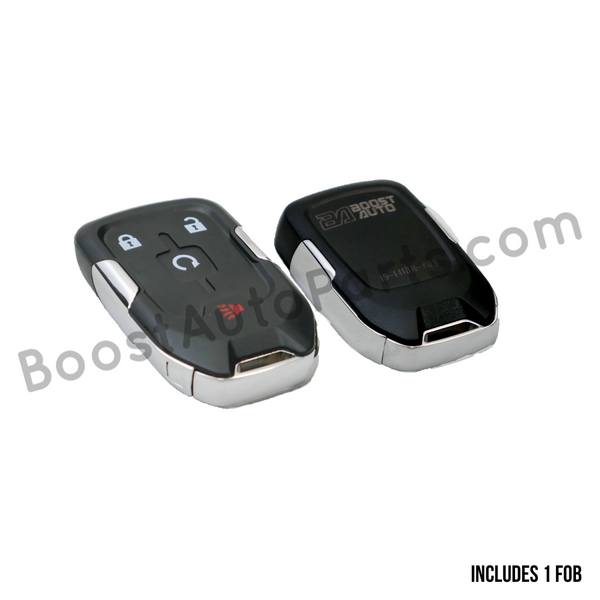

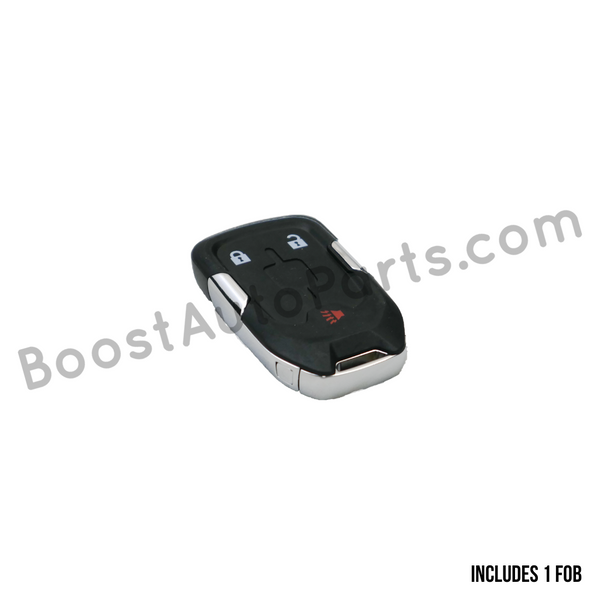

These 2020 Style key fobs are a direct replacement for your 2007.5-2014 GM full-size trucks including Chevy Silverado and GMC Sierra. The factory fobs leave a lot to be desired in aesthetics, but Boost Auto offers these stylish key fobs with rugged chrome plating normally only offered on the 2020+ trucks.
Fitment: These key fobs fit diesel models including LMM and LML.
Cross Reference: These Key Fobs may be compatible with the following part numbers: 20952474, 15913421, 20868672, 22759546, 22936098, 15913420, 20868852, 20669056, 20869056, 22936099, 20952475, 15913427, 22951510, 15913418, 15857836, 15913415, 2295109, 15857839, 25839476, 15916016, 22951509, 22756459, 5922377, 22936101, 25830632, 15916015, 15913416, 15857835, 20952476, 22936100.
Vehicle fitment | Fitment note |
- 2020 Style Key Fob Retrofit
- Rugged Chrome Shell
- User-programmable in under 3 minutes (2011-2014 trucks are user-programmable using our Boost Auto programmer)
- Installation Instructions Included (See Installation Tab)
- Equipped with & without remote start
- 1-year Warranty
- Item Condition: New
- Free Ground Shipping (Lower 48 States)
Link to 2007.5-2010 (with driver command center) install video: https://youtu.be/l9Mxyq0K2Is
Link to 2007.5-2010 (without driver command center) install video: https://youtu.be/-AJZ61jXM8c
Link to 2011-2014 install video: https://youtu.be/vk4SSfHYuvE
FAQ
The year ranges are only provided as a guide, we always recommend checking the FCC ID on your original fob and comparing it to the ones we have listed.
You can find the FCC ID on the back of your original fob. If you don't have an original fob, please contact your local dealer and provide them with your VIN. They will provide you with the OEM part number and we will be able to provide you the correct key fob based on that part number.
• OUC60270 or OUC60221 = 2007.5-2014 Version(s)
If you have RPO code AU0, AP8, or AP3 in your glove box then you are equipped for keyless entry. Simply purchase new fobs and follow the programming procedure.
Please watch our installation videos which are shown under the installation tab above.
2007-2010 fobs can be programmed by the user in under 3 minutes without an additional programmer.
2011-2014 trucks must be programmed using a programmer. Boost Auto Parts offers a programmer with the kit allowing the key fob to be programmed in under 3 minutes. The key fob can also be taken to the dealer to be programmed if you did not opt for our programmer.
Up to four (4) fobs can be programmed at once.
Yes, you can mix and match any combination of fobs you wish - up to a total of four fobs.
If you have the RPO code AP3 in your glove box then your truck is compatible with remote start. Simply purchase the remote start key fobs and program them.
If your truck does not have the AP3 RPO code, the remote start feature will not function.
Remote start is only offered on 2007+ vehicles.
Keyless entry would refer to the ability to enter the vehicle without the need of turning the physical key onto the vehicle’s door lock. Keyless entry allows users to enter the vehicle with the use of a key fob.
Vehicles that are equipped with this feature will be compatible to program our key fobs.
The RPO code is printed on the sticker in the passenger glove box. It is the left sticker in the glove box.
Our fobs generally don't work with aftermarket remote start systems.
The only exception to this, is some systems utilize a triple click of the OEM fob to remote start the vehicle. If you have a system that you use the OEM fob to trigger the remote start (like the one previously mentioned), our fob will also work but you must purchase the one without remote start (you will just triple click the same button sequence as OEM).
The fobs come with a battery pre-installed.
If you find yourself needing to replace the battery at a later point in time, reach out to our support team for guidance on how to replace it.
Check out the video on the installation page!
GM took away the ability for vehicle owners to program fobs themselves beginning in model year 2011. Typically these vehicles require a trip to the dealership ($100+) to program the fobs using a special tool.
The Boost Auto OBD programming tool plugs directly into your vehicle's diagnostic port and places the vehicle into programming mode so you can program fobs yourself in under 3 minutes.
The OBD programming tool can be used as many times as you would like on your vehicle, however, it will only work on one unique VIN so it cannot be used on multiple vehicles.
Why Choose Boost Auto?
Reviews
- Reviews
- Questions

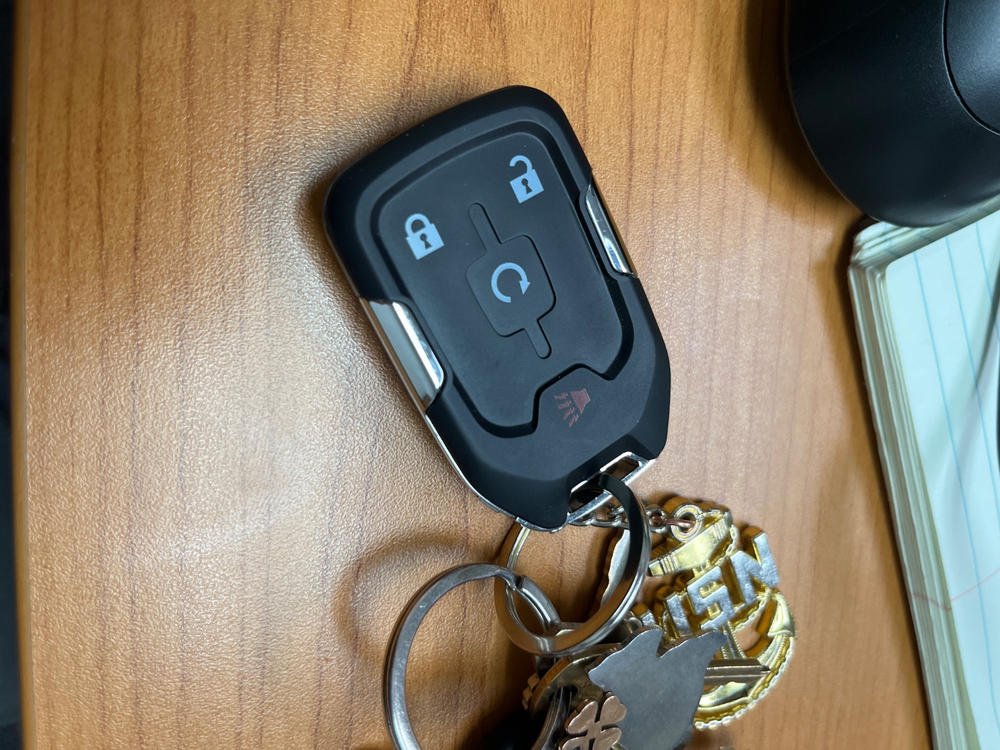

Major upgrade

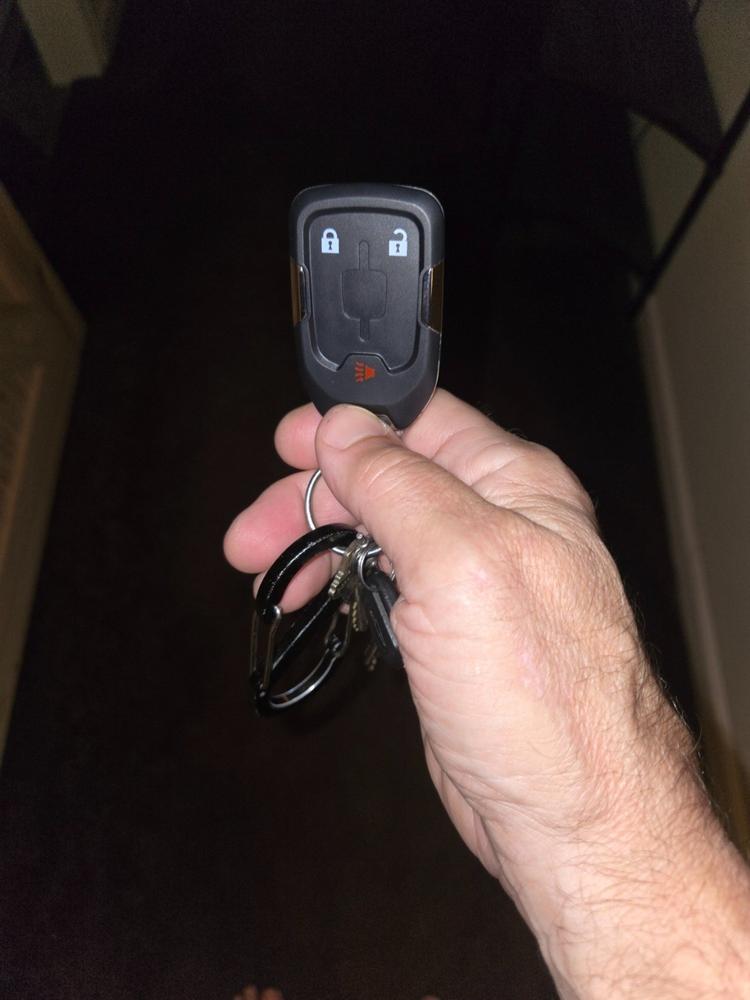

The previous owner of my truck lost the key fob so I purchased the retrofit after watching some programming videos. The fob is very nice quality, came with a battery installed, and was extremely easy to program to the truck. Very happy with the purchase.
Well made and no surprises.
Product and shipping were as expected.
Awesome Products
I had actually reached out a few weeks ago stating the products are freakin awesome, you guys killed it with the new fob/OBD tool, I also purchased the all the time fog lights kit. Good job all!!
They work perfect

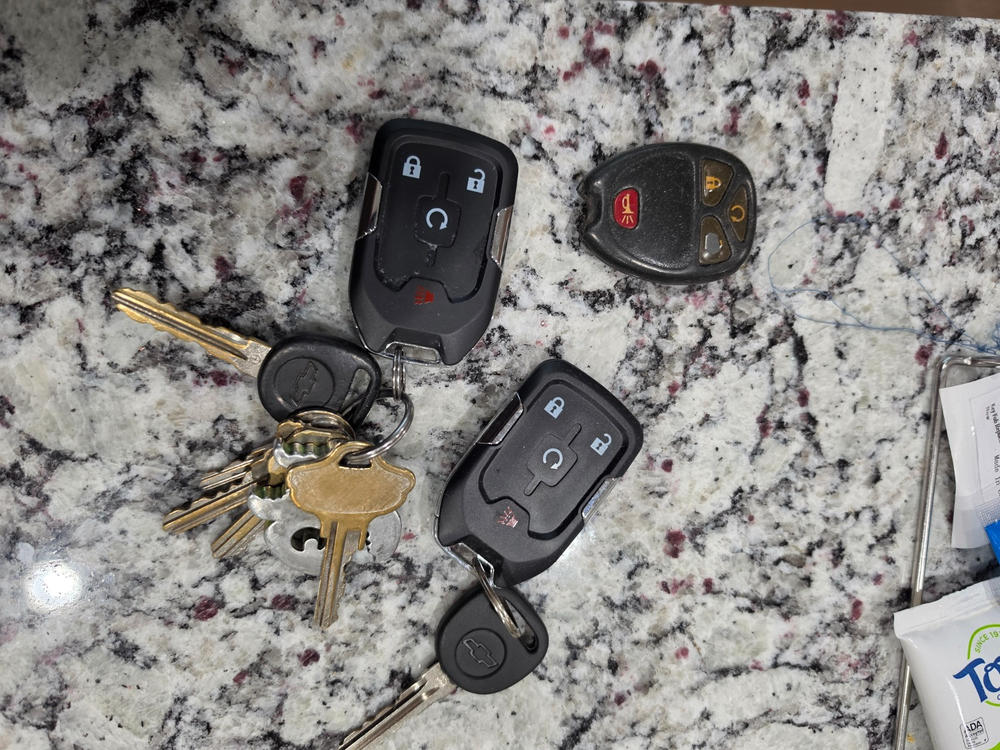

The fobs took less than 5 minutes from start to finish to program and work perfectly. The range even seems better than the oem fob I have. I'm very happy I that batteries were pre-installed and I didn't have to make a separate trip to hunt down the correct battery. Overall I'm very satisfied with the fobs I ordered.
Absolutely Stunning!
Absolutely Stunning and it works perfectly. Solidly made. 100% would recommend.
