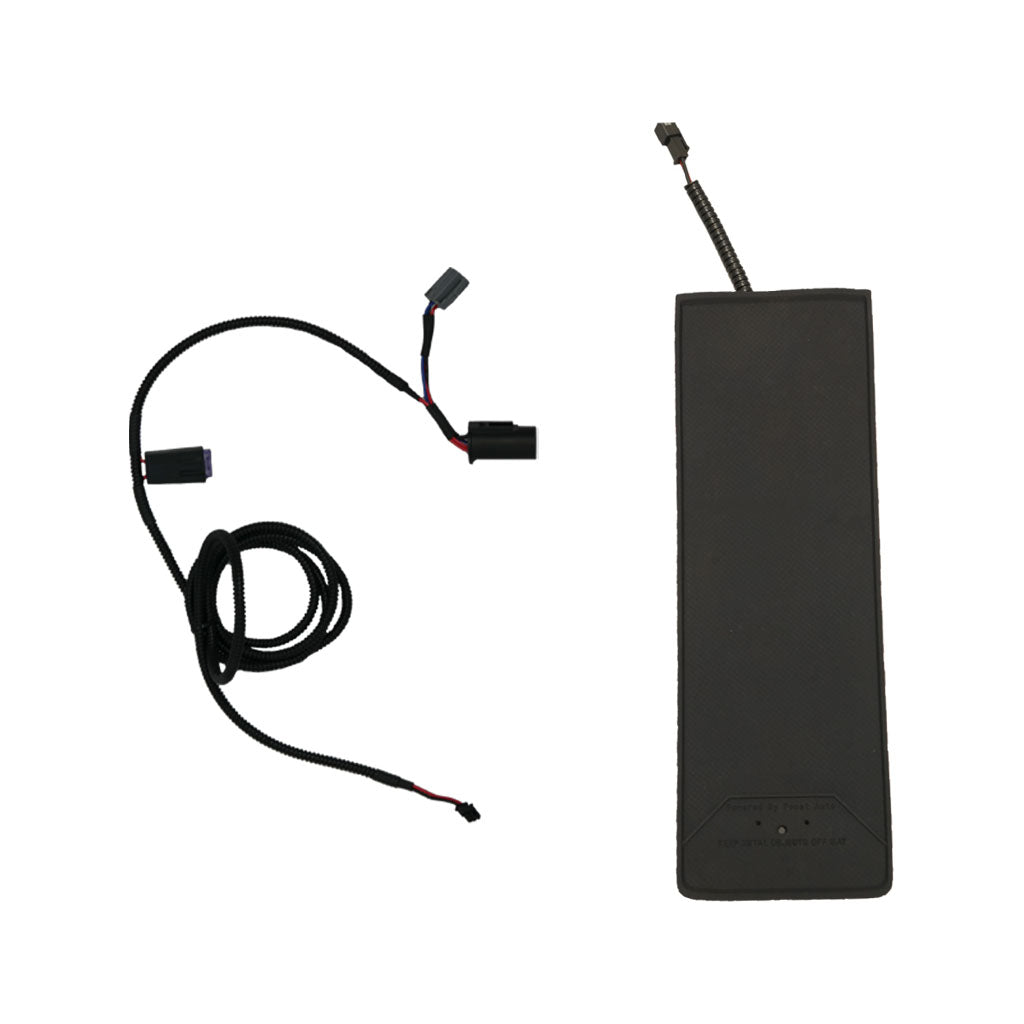

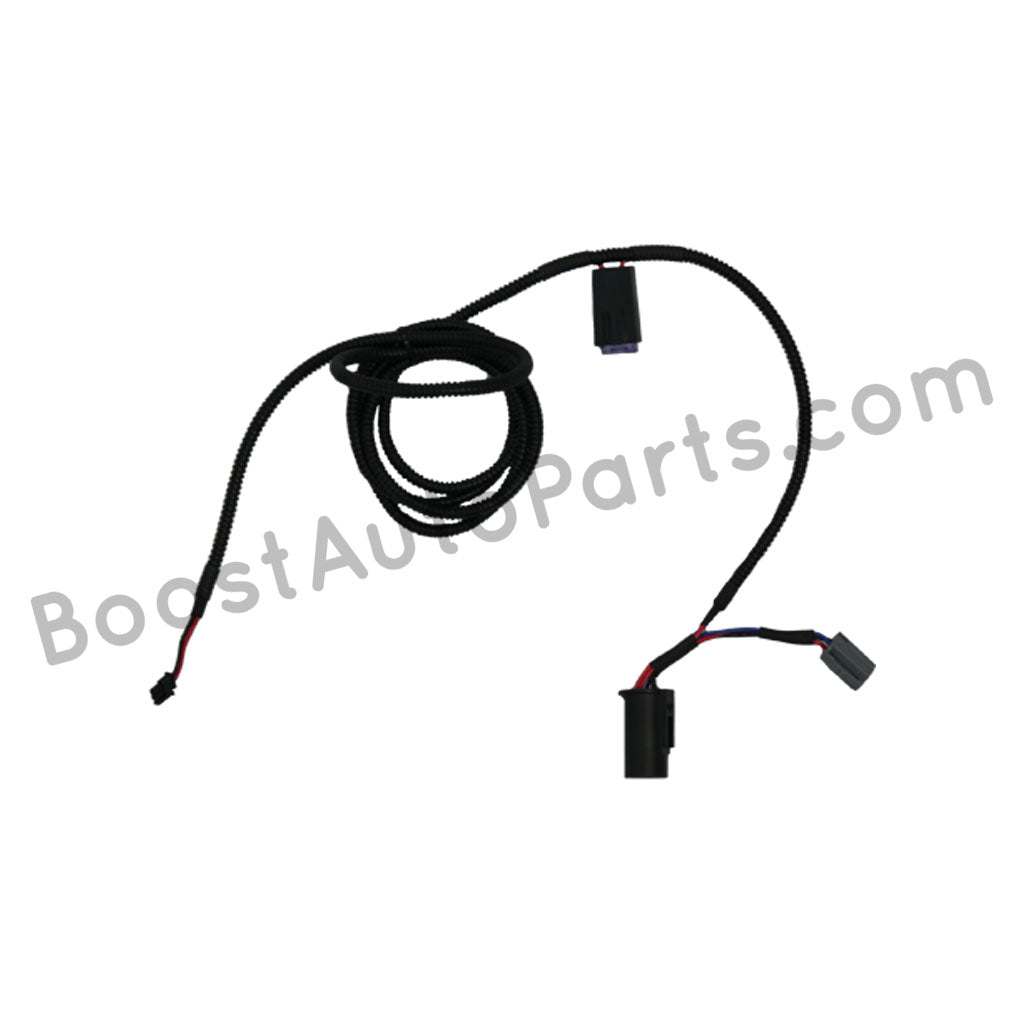

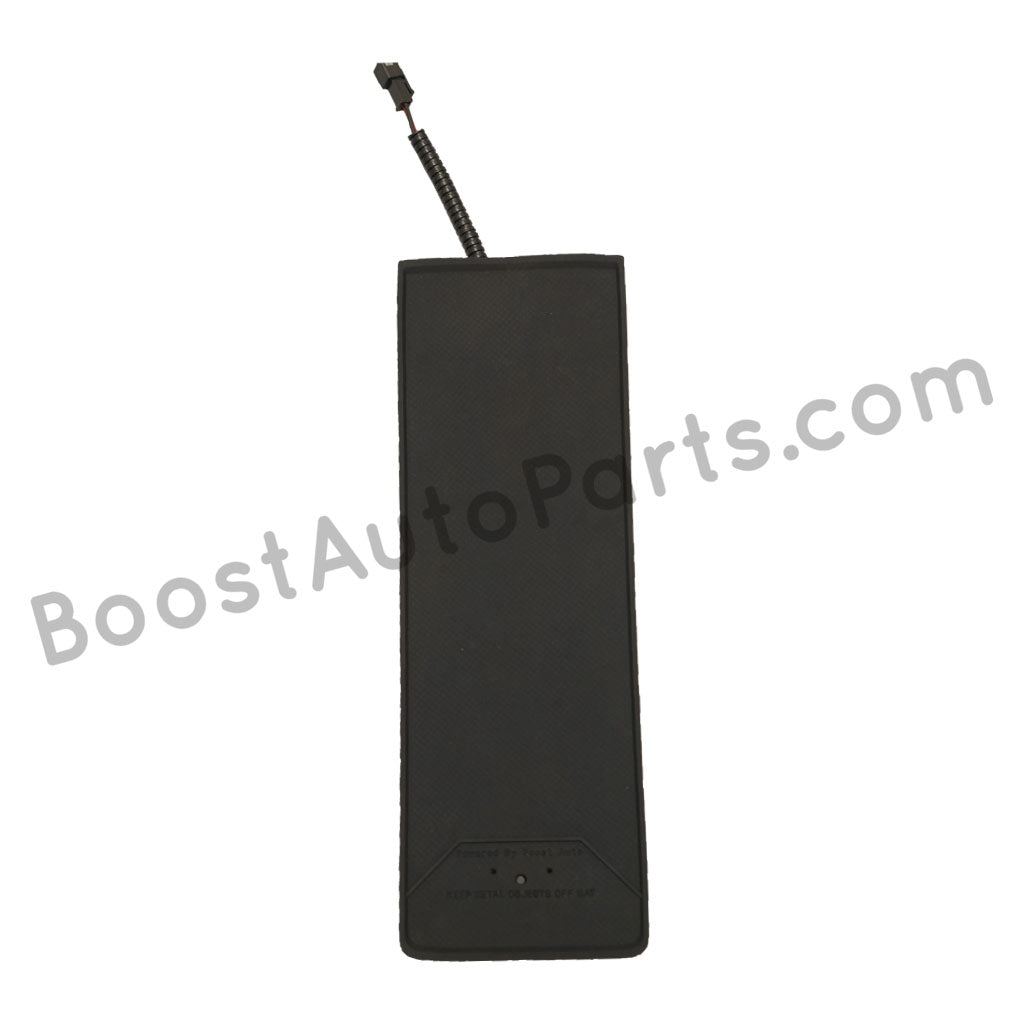

You will receive the assembled charger which contains custom molded parts to seamlessly fit your center console, the 15W triple coil phone charger, a rubber mat, and a plug and play wiring harness.

Installation takes about 15 minutes following our YouTube videos (links above). The only tools needed are a phillips head screw driver, a drill with 3/8" bit, and a body trim tool (or flat head screw driver).

The charger is capable of charging up to 15W, so if your phone is equipped to charge at fast speeds this charger will do it. Your phone will charge faster on the wireless charger than with a cord plugged into the standard 12V outlet.

If your phone has a Qi (industry standard) charging receiver built in, our charger will work. iPhone 8 & newer, as well as many Android devices, are Qi compatible. If you are unsure if your phone will work please contact your phone manufacturer.

We know everyone has different preferences on this, so we designed two different modes into the charger.

Mode 1 has a red resting light on when the charger is in standby mode (ready to charge, but nothing in the charging area). When a phone begins charging the red light will turn off and illuminate blue. When the phone is removed from the charger the light will return to red.

Mode 2 has no resting light when the charger is in standby mode (ready to charge, but nothing in the charging area). When a phone begins charging the blue light will illuminate, and when the phone is removed from the charger the light will turn off.

Pressing the sub-flush switch once will cycle between the modes.

Most phones will still charge with a case on, however, some thick cases may need to be removed. The charging zone is reduced when a phone has a case on it, so for optimal charging we recommend removing your case.

Simply press and hold the sub-flush button for 3 seconds and the charger will turn off. Repeat the process when you are ready to turn it back on.

The charger utilizes a triple coil to extend the charging zone, however, the charging zone varies depending on the size and shape of your phone. Bulky cases significantly reduce the charging zone, however, the charger still charges through most phone cases. Optimal charging is achieved by placing the phone near the coils in the middle of the mat.

The charger should not drain the vehicle's battery, as the LEDs draw next to no current. If you have any doubt you can always press and hold the sub-flush button for three seconds and power off the charger entirely.

Our charger will NOT add Apple CarPlay or Android Auto to your vehicle if your vehicle was not originally equipped with these features, however if your vehicle was originally equipped with these features you will retain these features.

If your vehicle originally had Apple CarPlay or Android Auto – the vehicle will function as follows:

• For vehicles originally equipped with WIRELESS Apple CarPlay/Android Auto: Our wireless charging kit will wirelessly charge your phone while Apple CarPlay or Android Auto is in use, without needing to plug in the phone.

• For vehicles originally equipped with WIRED Apple CarPlay/Android Auto: Our charger will simply charge the phone, it will NOT convert Android Auto or Apple CarPlay to wirelessly function.
